Network cabling scope

Cat6 Network Points

Points for computers, printers, CCTV equipment, WiFi access points and compatible network devices.

Cable Routing

Practical routes using available trunking, conduit, ceiling routes or agreed pathways.

RJ45 Termination

Terminate applicable Cat6 network cables and network points.

Patching

Applicable rack, patch-panel and switch connections where included in scope.

Port Labeling

Label relevant network points or rack-side connections where included.

PoE Support

PoE switching and network connectivity planning for compatible devices.

From cable route to handover

1. Review requirement

Property, point count, device types, rack and existing infrastructure.

2. Plan Cat6 routes

Review cable paths and access before finalising scope.

3. Install and terminate

Run agreed cabling and complete applicable termination.

4. Patch and label

Complete applicable rack connections and identify relevant ports.

5. Basic connectivity checks

Check applicable network points and connected devices for basic connectivity.

6. Handover

Review completed points, labels, switch/PoE connections and outstanding items.

Testing. What we mean

Basic connectivity checks: after applicable termination and connection, we check relevant network points and connected devices for basic connectivity within the agreed scope. This page does not claim Fluke certification, permanent-link certification or a certified test report unless separately agreed and provided.

Real cabling & rack photos

Examples of network racks, patch panels, switches, Cat6 cabling and network equipment.

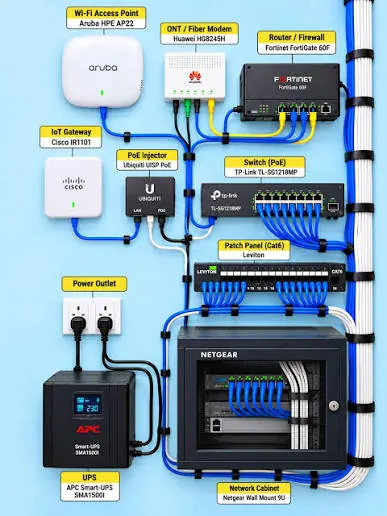

Network equipment layout with router, PoE switch, patch panel, UPS and network cabinet — Network equipment layout reference

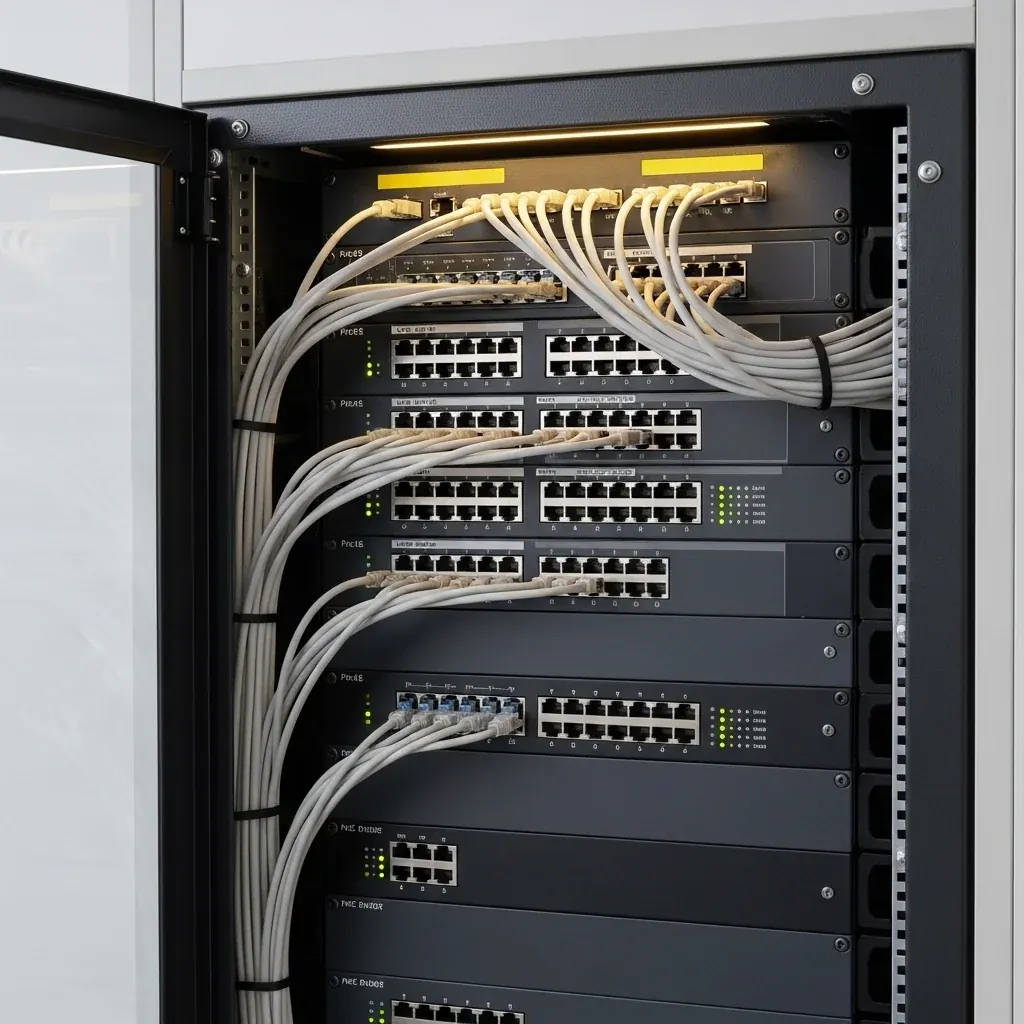

Network rack with switches and Ethernet cabling — Network rack and Ethernet cabling

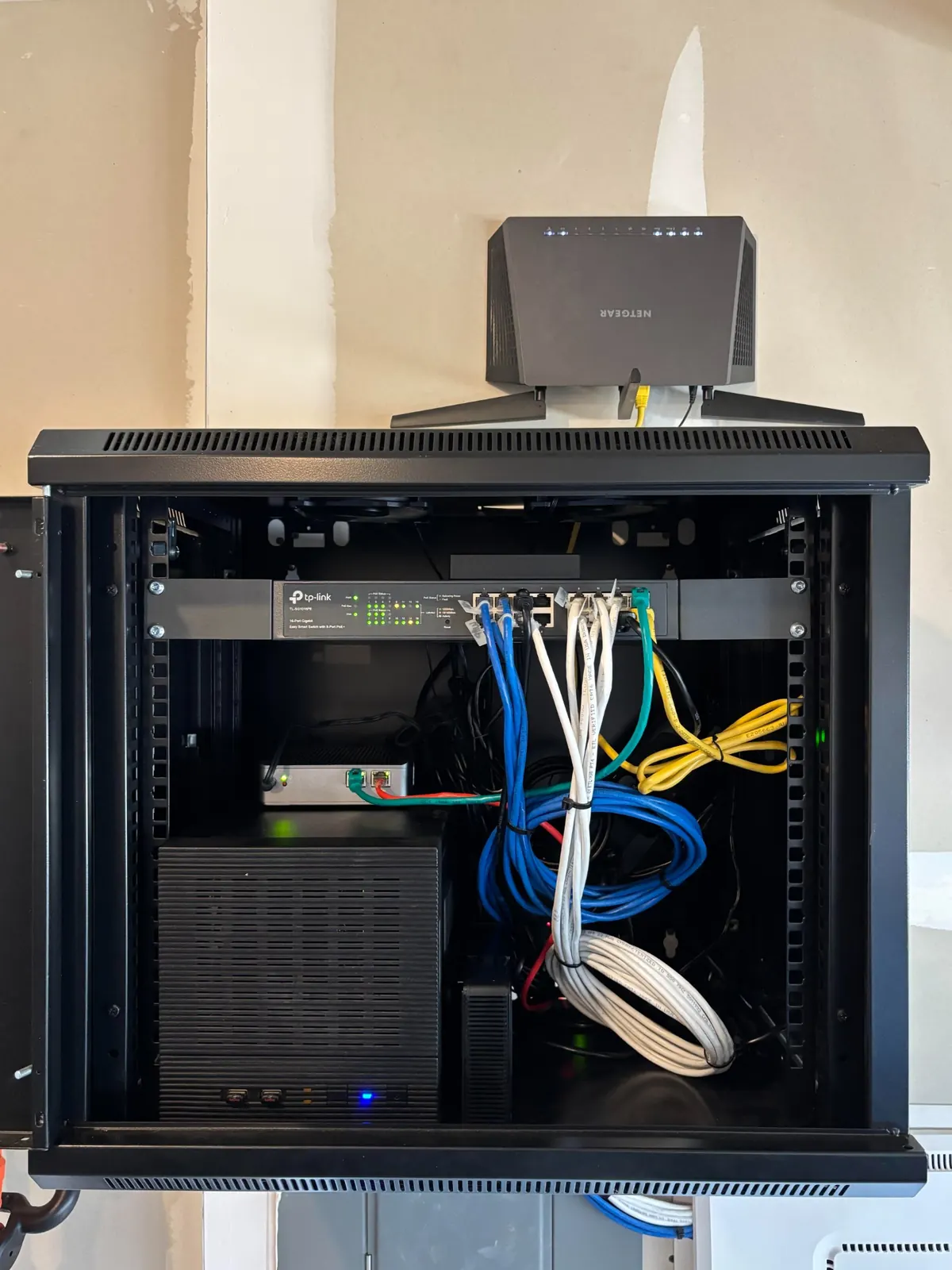

Wall mounted network rack with TP-Link switch and connected network cables — Switch and rack cabling

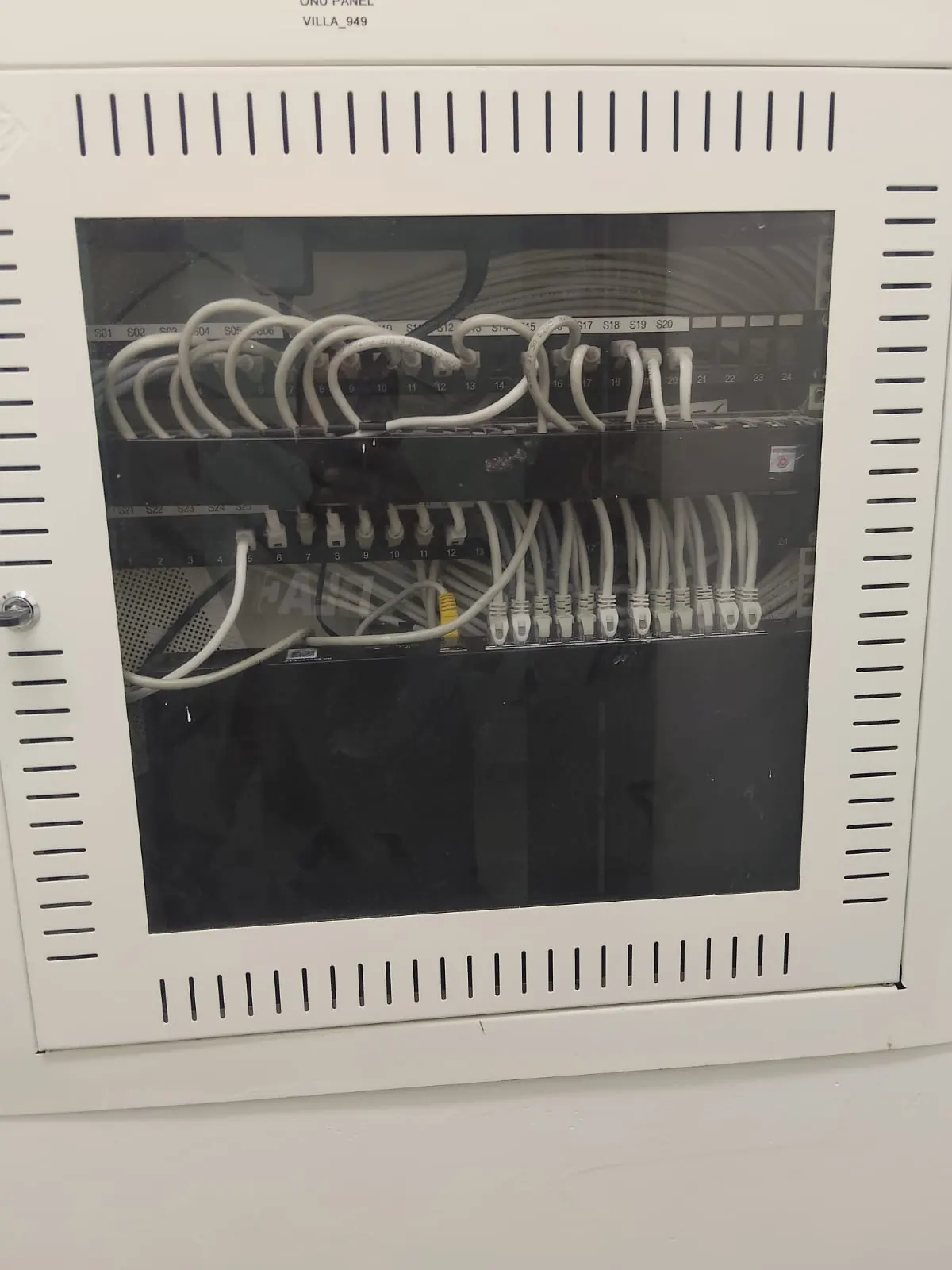

Network cabinet with labeled patch panel and Ethernet connections — Labeled patch-panel connections

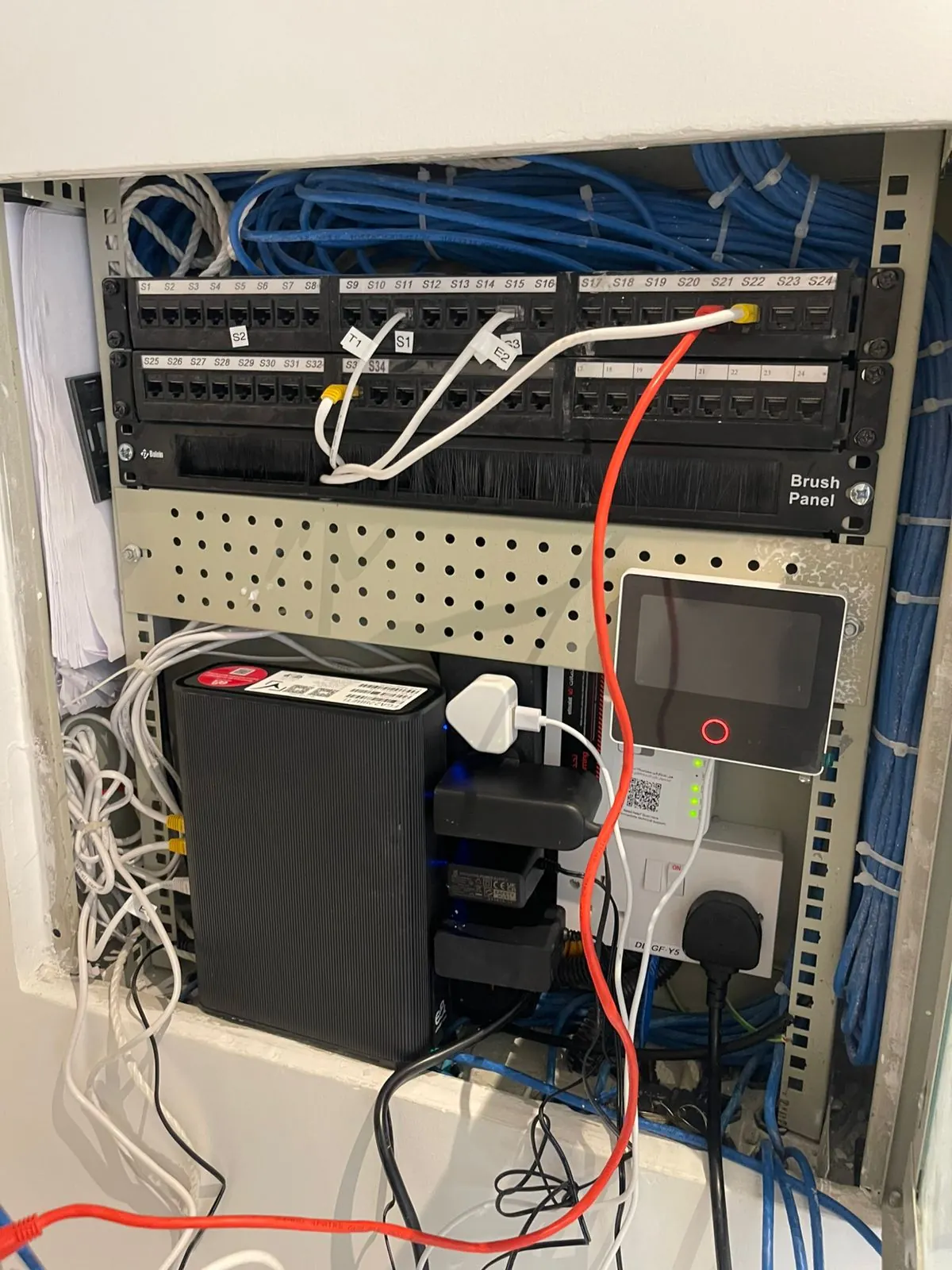

Cat6 patch panel with labeled ports and blue structured cabling — Cat6 patch panel and labeled ports

Network cabling handover

After agreed installation work, review completed points, relevant labels, switch or PoE connections and basic connectivity. Identify any agreed outstanding items before close-out.

Example handover:
Point 01 → Reception PC
Point 02 → CCTV NVR
Point 03 → WiFi Access Point
Point 04 → Office PC

Request a Network Cabling Quotation

Send property type, location, approximate network-point count, device use, existing cabling/rack details and preferred timing.
